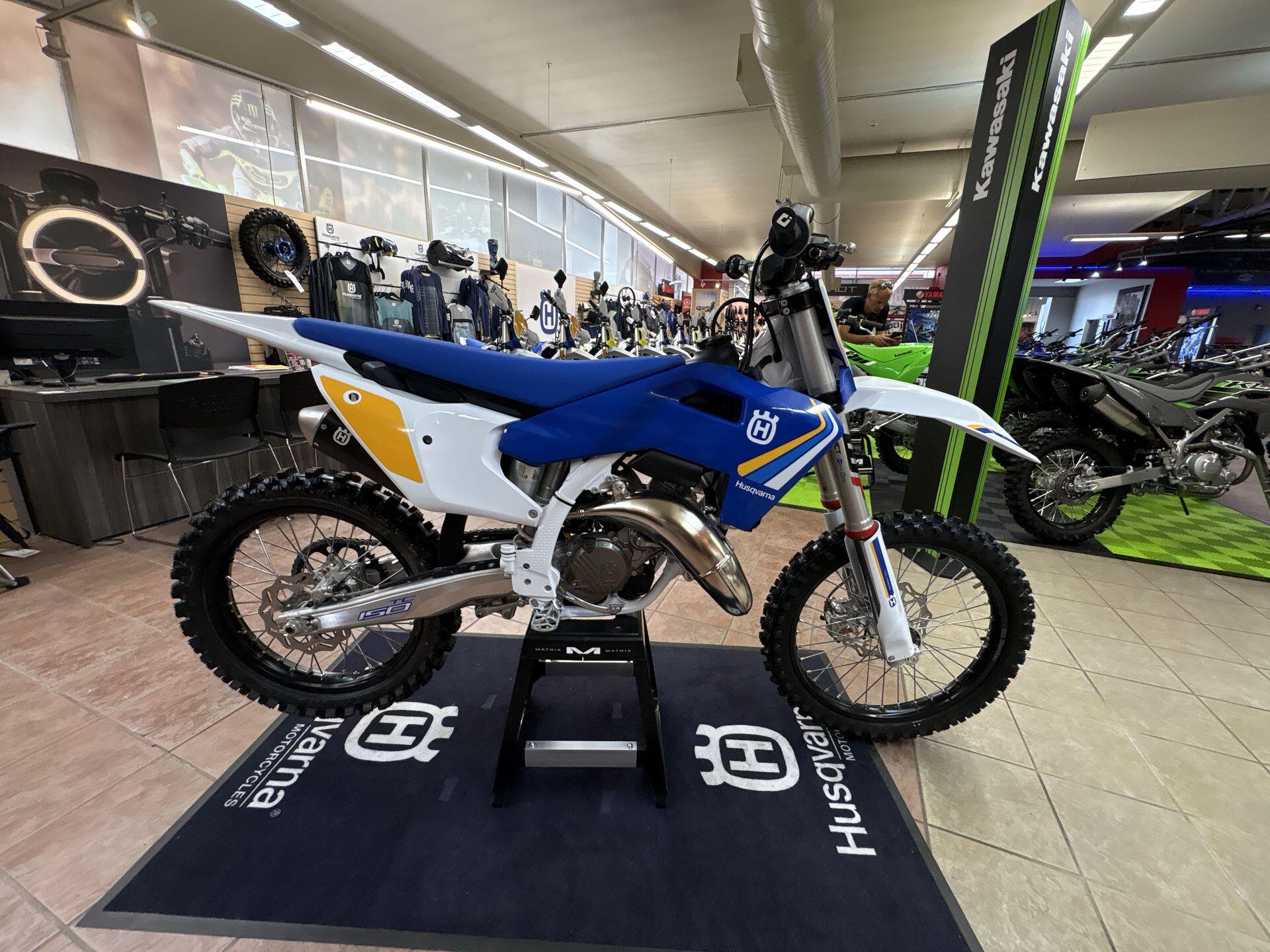

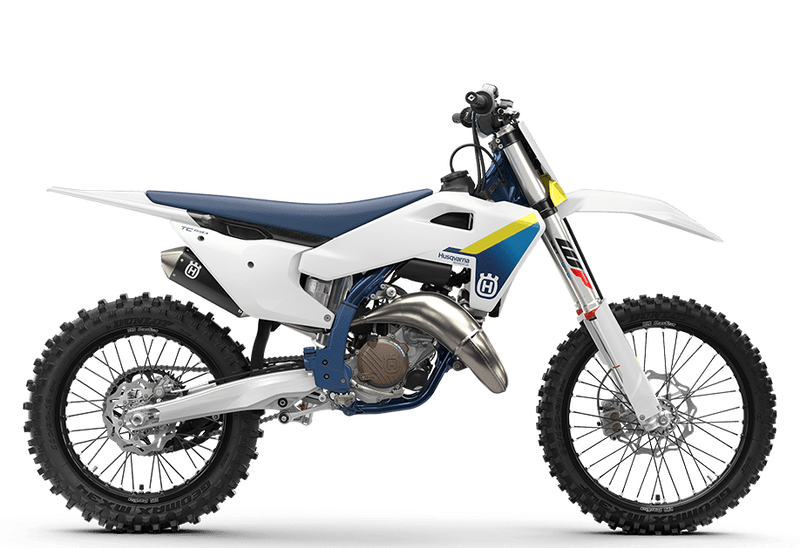

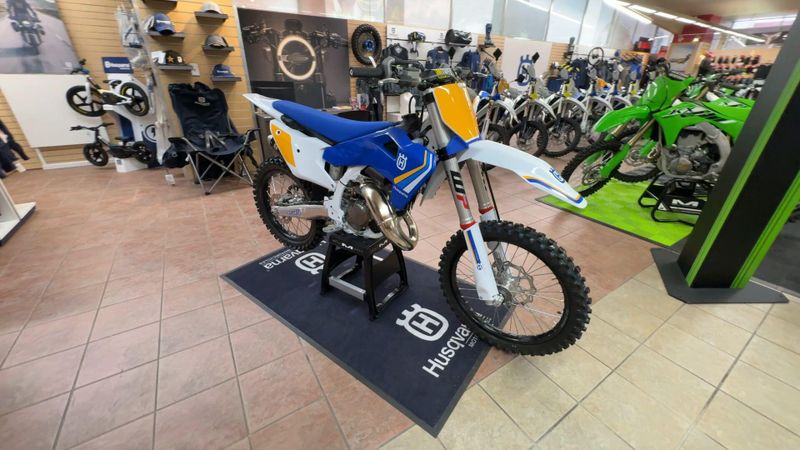

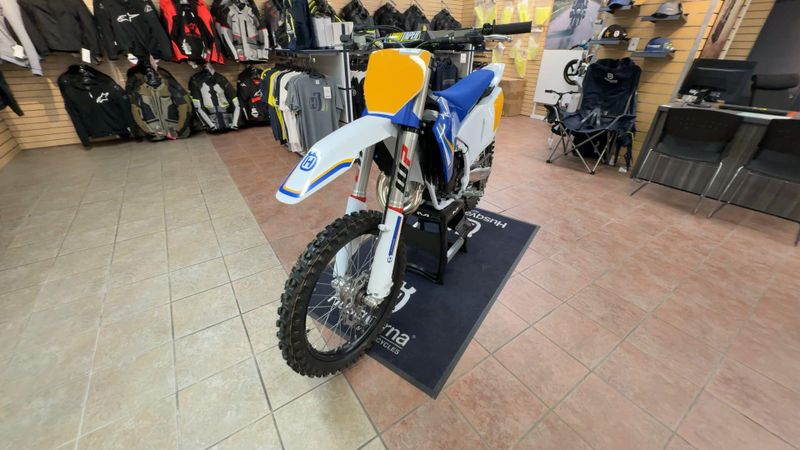

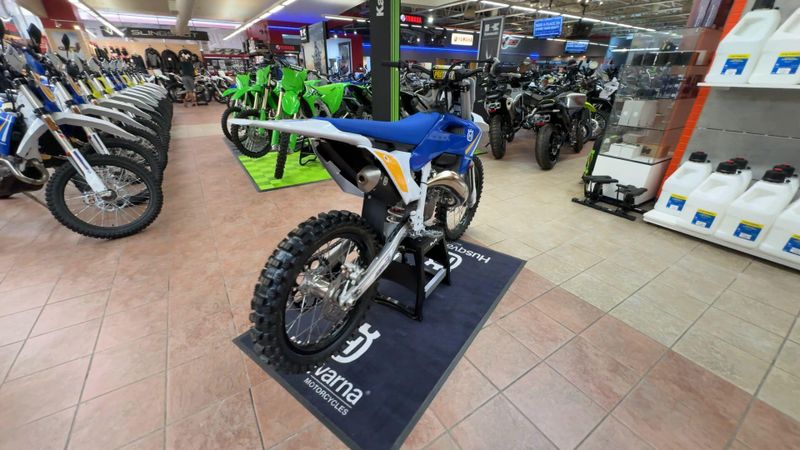

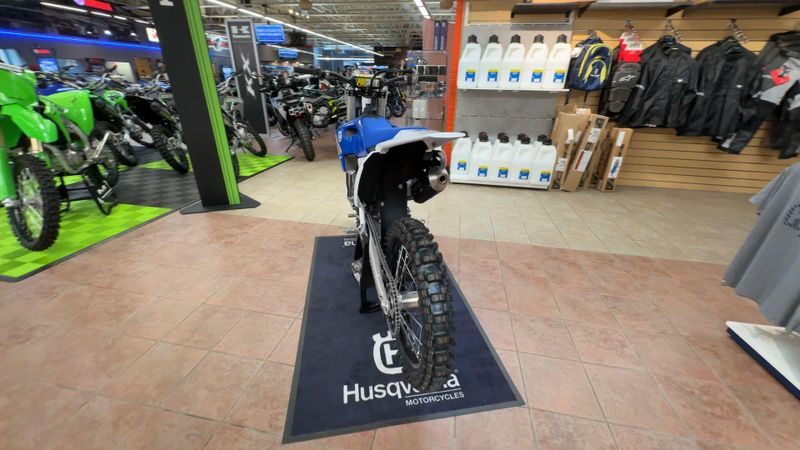

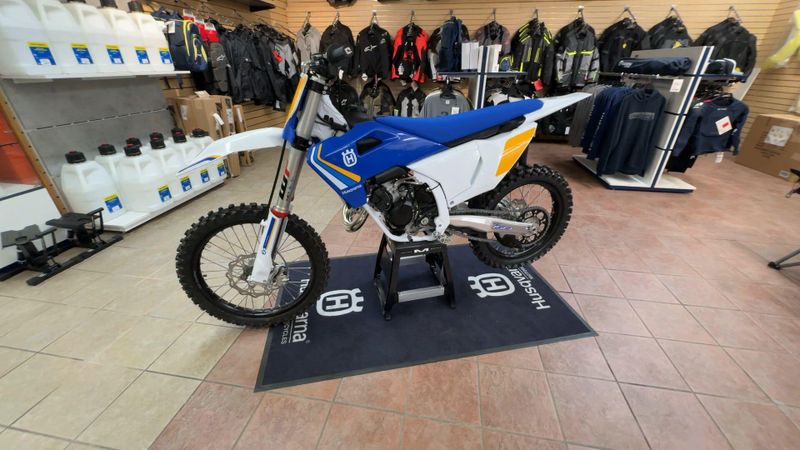

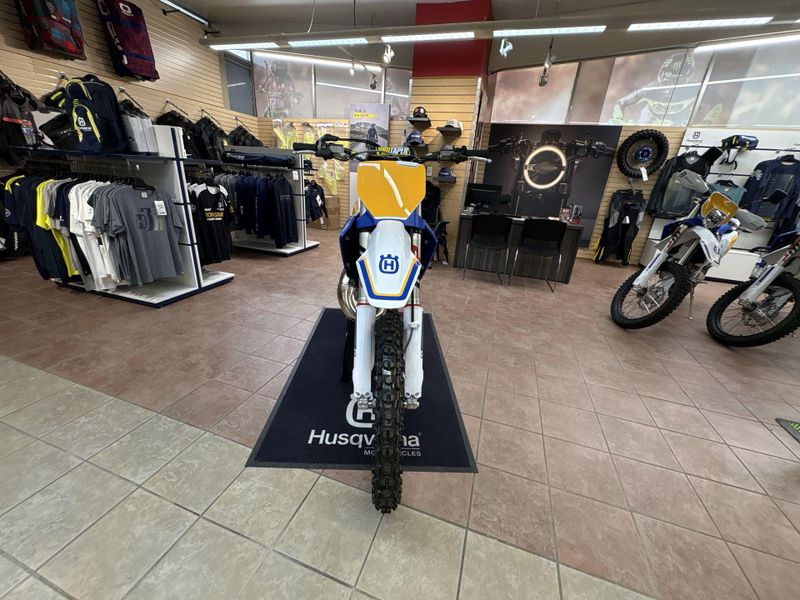

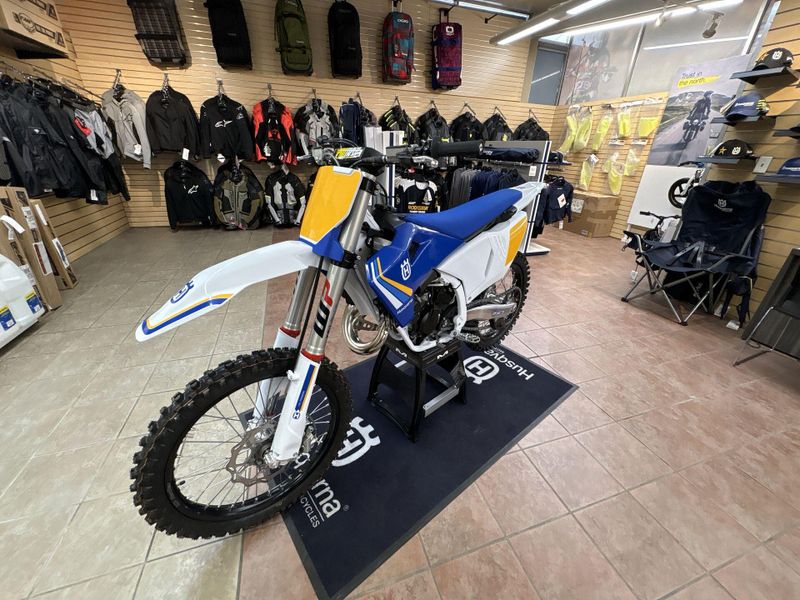

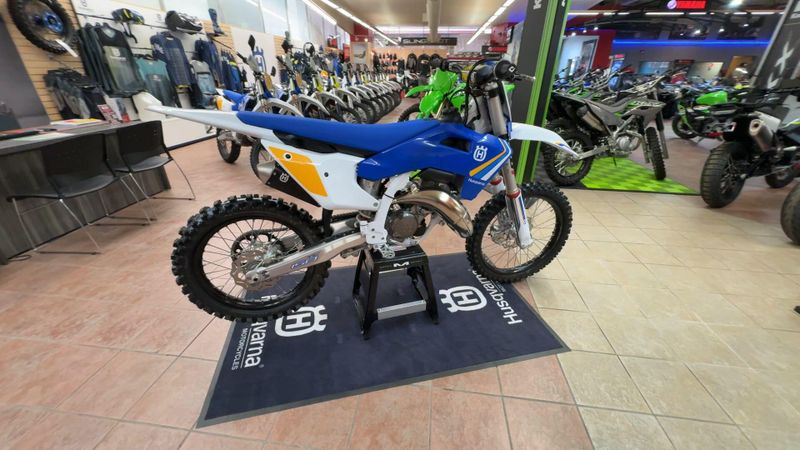

New 2025 HUSQVARNA TC 150 HERITAGE
Vehicle Details
- Stock #: T13684
- VIN: VBKUXH236SM163684
- Exterior Color: WHI
Similar Vehicles
TC 150
New for 2025 is the 2-stroke TC 150. Expertly assembled with the latest offroad technology and premium components, this new addition to the line-up is the perfect choice for riders looking for a little more torque than a traditional 125 cc motocross machine. The TC 150 features an electric start for reliable starting and a highly sophisticated electronic fuel injection system that delivers a smooth spread of controllable power for unbeatable on-track performance. A close-ratio six-speed gearbox, made by Pankl, ensures smooth gear changes and reliability while consistent shifting in all conditions is assured thanks to the uniquely designed gear lever. Ergonomic bodywork wraps around a finely balanced metallic blue chromium molybdenum frame with striking white and blue graphics creating a modern look for the TC 150.
Highlighted Features

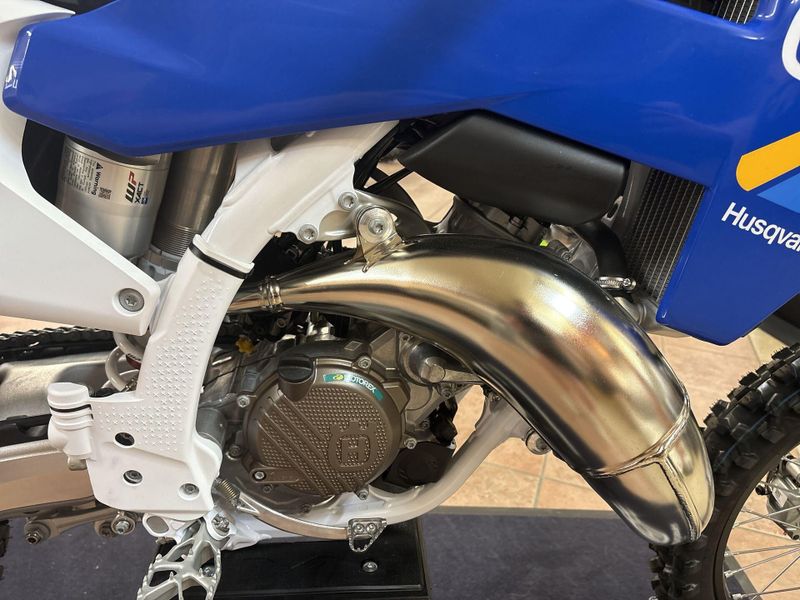

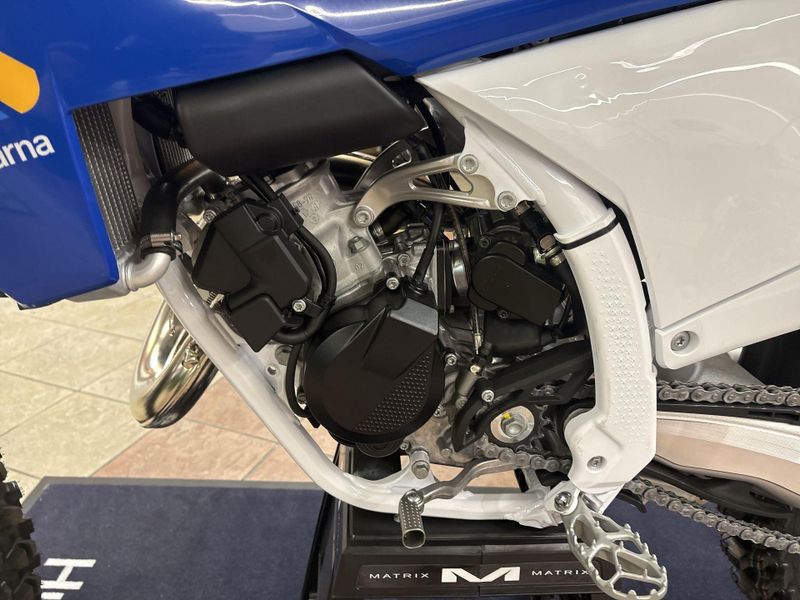

- Engine: The new and compact 150 cc engine produces class-leading power and torque to suit a wide variety of riders. Mass centralisation inside the engine contributes to the light and agile handling of the machine while a fuel injection system and electronic exhaust control are introduced for the first time on this model. Routine maintenance of the new engine is simplified thanks to the clear markings on the engine covers, which indicate where to check the gearbox oil level, as well as where to drain the coolant from.
- Cylinder: The cylinder features a 58 mm bore and as the TC 150 is fuelled via electronic fuel injection (EFI), the traditional powervalve is replaced with an innovative electronic exhaust control system. Using an actuator, the lateral exhaust port and main exhaust port open simultaneously for maximum power delivery.
- Crankshaft: The lightweight crankshaft improves throttle response and reduces vibration to a minimum. The component is precisely positioned to ensure rotational mass has very little effect on the overall handling of the motorcycle.
- Crankcases: High-pressure die cast production processes allow for the crankcases to be manufactured with a thinner wall thickness to keep the overall weight to a minimum and optimise mass centralisation. Symmetrical engine mounts aid handling by contributing to the flex characteristics of the chassis. Internally, all engine components are positioned to achieve an ideal centre of gravity.

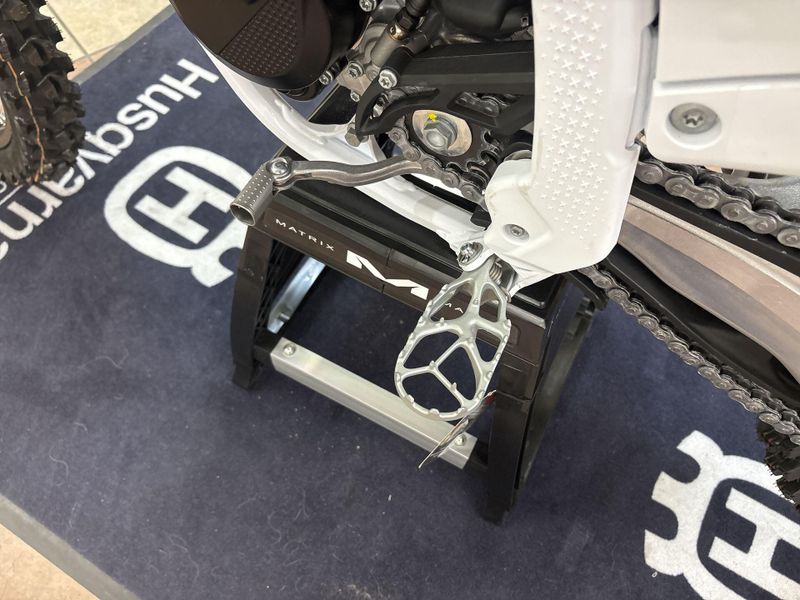

- Gearbox: The 6-speed gearbox is manufactured exclusively by Pankl Racing Systems and ensures the highest level of durability and reliability. The shift drum and shift fork improve overall leverage for significantly smoother and more precise shifting. A special gear lever tip design prevents dirt build-up for positive gear changes in all conditions.
- DS Clutch: The diaphragm steel (DS) clutch fitted to the TC 150 features a unique design where a single diaphragm steel pressure plate is used instead of traditional coil springs. Housed inside a CNC machined steel basket, the overall clutch design is highly durable and contributes to the compact layout of the engine.
ENGINE
- TRANSMISSION: 6-speed
- BATTERY CAPACITY: 2 Ah
- COOLING: Liquid cooled
- STARTER: Electric starter
- STROKE: 54.5 mm
- BORE: 58 mm
- CLUTCH: Wet multi-disc DS clutch, Brembo hydraulics
- DISPLACEMENT: 144 cm³
- EMS: Vitesco Technologies EMS
- DESIGN: 1-cylinder, 2-stroke engine
- FUEL-MIXTURE GENERATION: Keihin EFI, throttle body 39 mm
CHASSIS
- WEIGHT (WITHOUT FUEL): 92.8 kg
- TANK CAPACITY (APPROX.): 7.2 l
- WHEELBASE: 1490 mm
- FRONT BRAKE DISC DIAMETER: 260 mm
- REAR BRAKE DISC DIAMETER: 220 mm

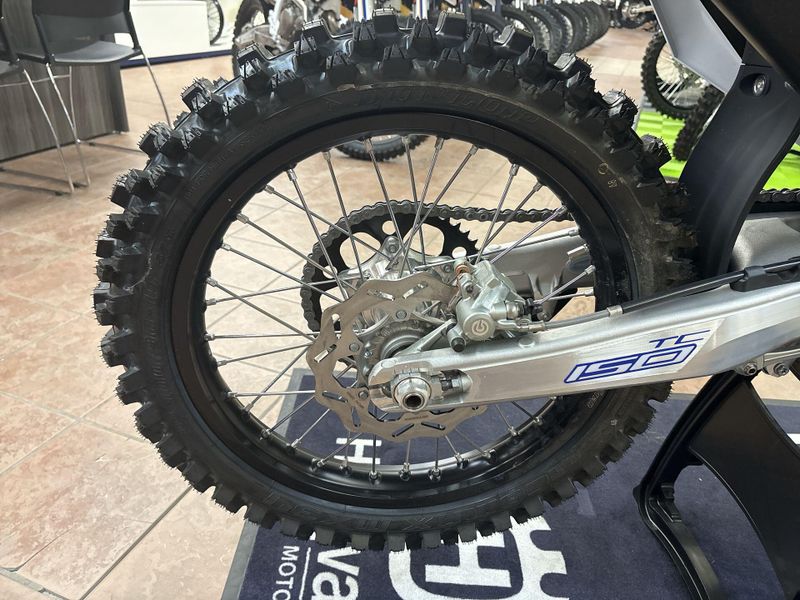

- FRONT BRAKE: Disc brake
- REAR BRAKE: Disc brake
- CHAIN: 520, Non-sealed
- FRAME DESIGN: Central double-cradle-type 25CrMo4 steel

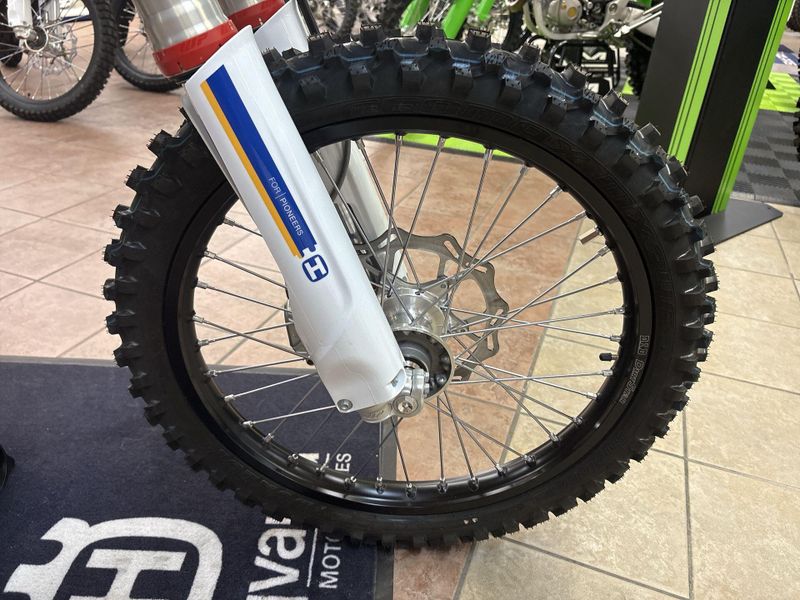

- FRONT SUSPENSION: WP XACT-USD, Ø 48 mm
- GROUND CLEARANCE: 350 mm
- HANDLEBAR: Pro Taper, Aluminium Ø 28/22 mm
- REAR SUSPENSION: WP XACT Monoshock with linkage
- SEAT HEIGHT: 946 mm

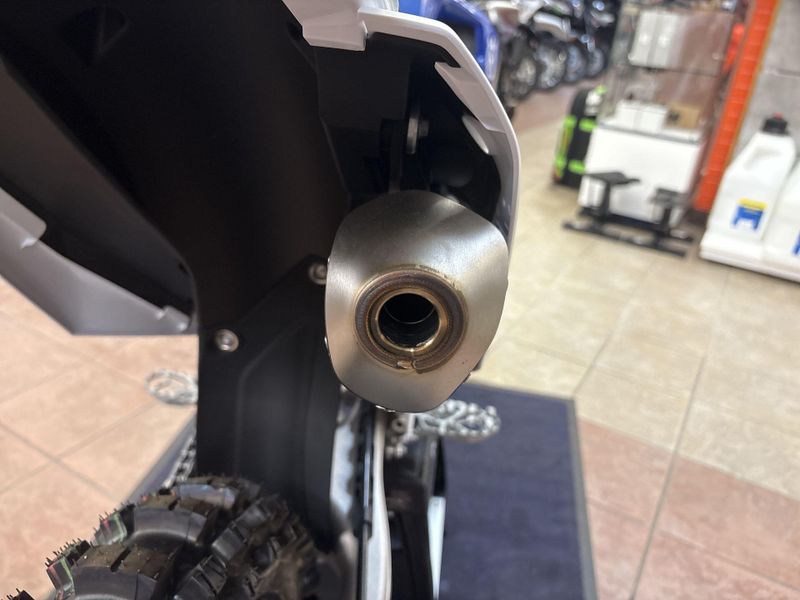

- SILENCER: Aluminium
- STEERING HEAD ANGLE: 63.9 °
- REAR SUBFRAME DESIGN: Aluminum-reinforced polyamide
- SUSPENSION TRAVEL (FRONT): 305 mm
- SUSPENSION TRAVEL (REAR): 293 mm
- WHEELS: Spoked wheels with aluminium rims
