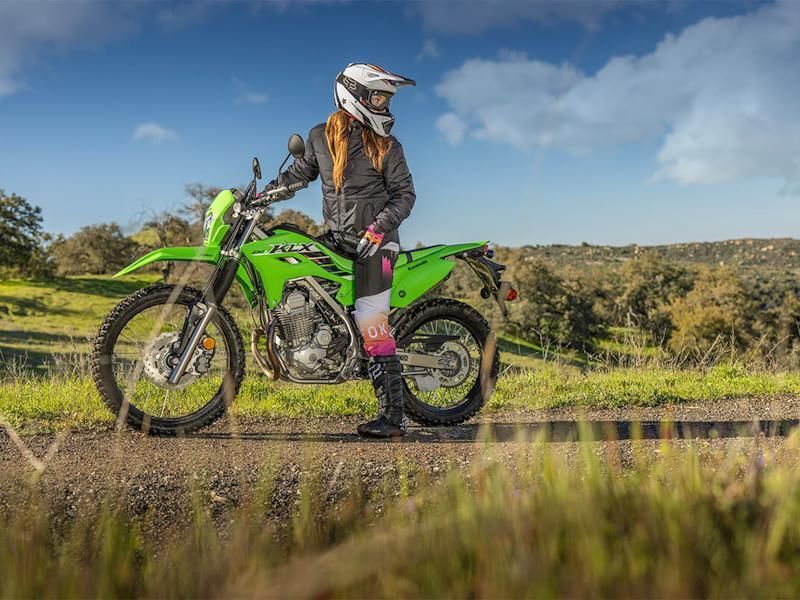

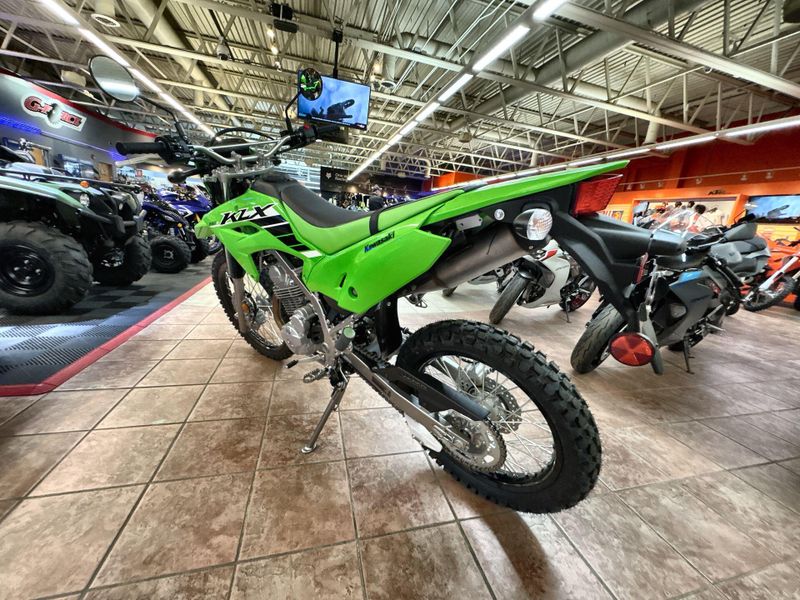

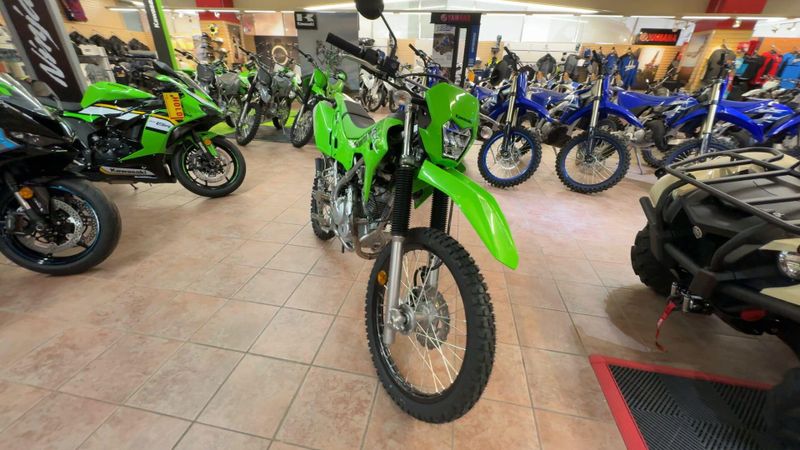

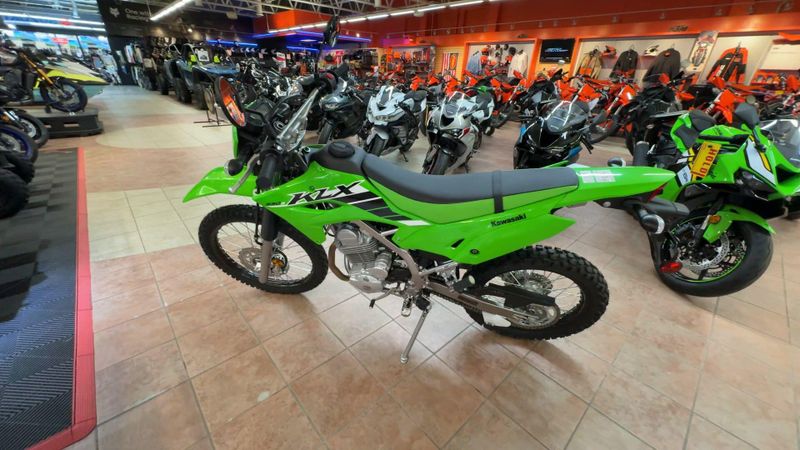

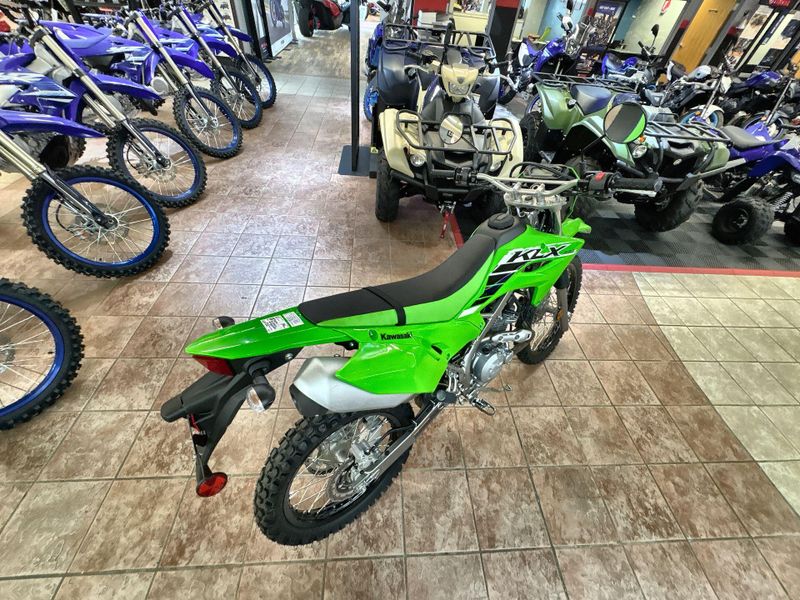

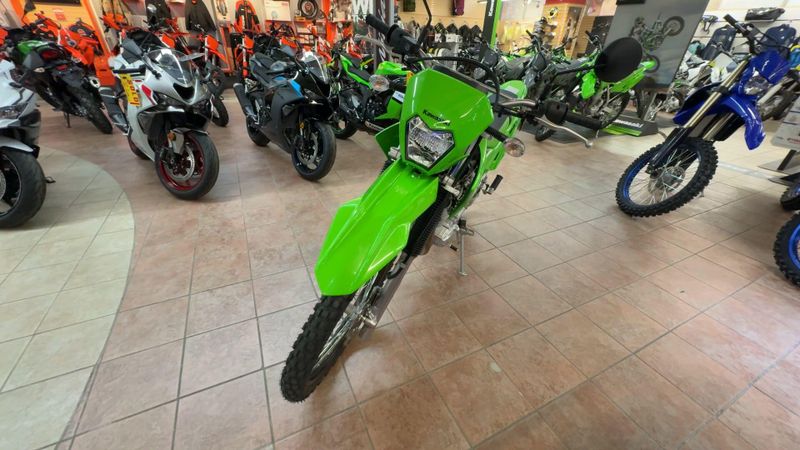

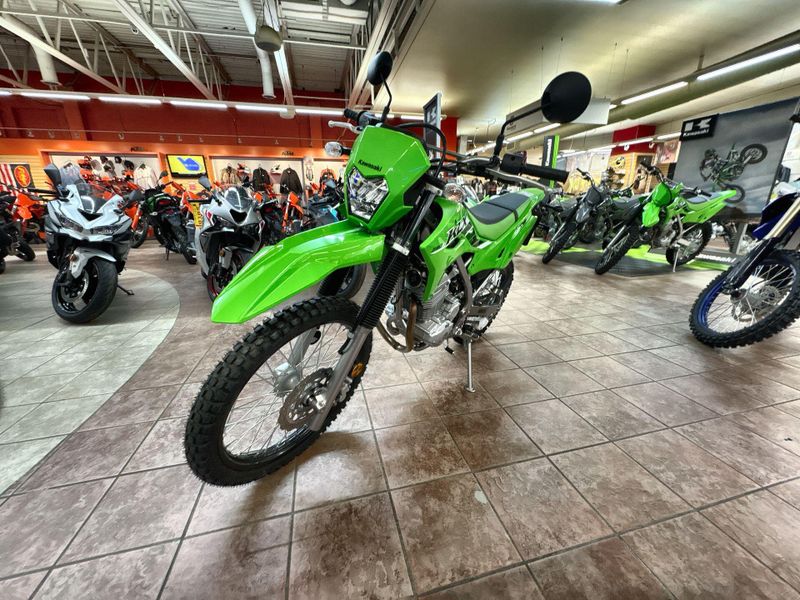

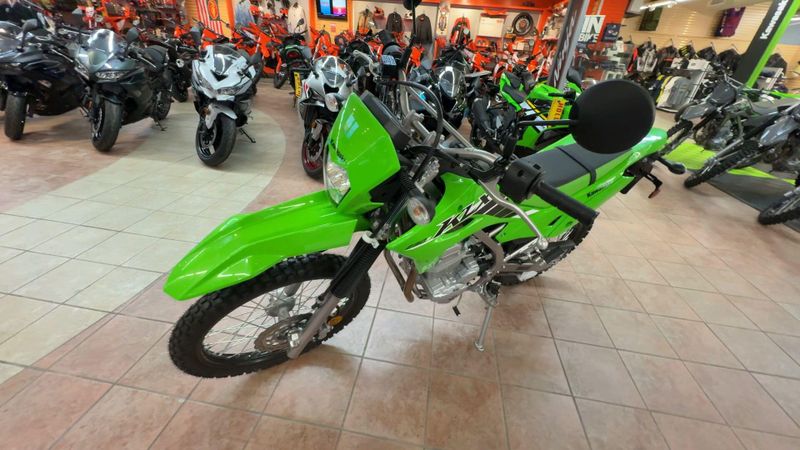

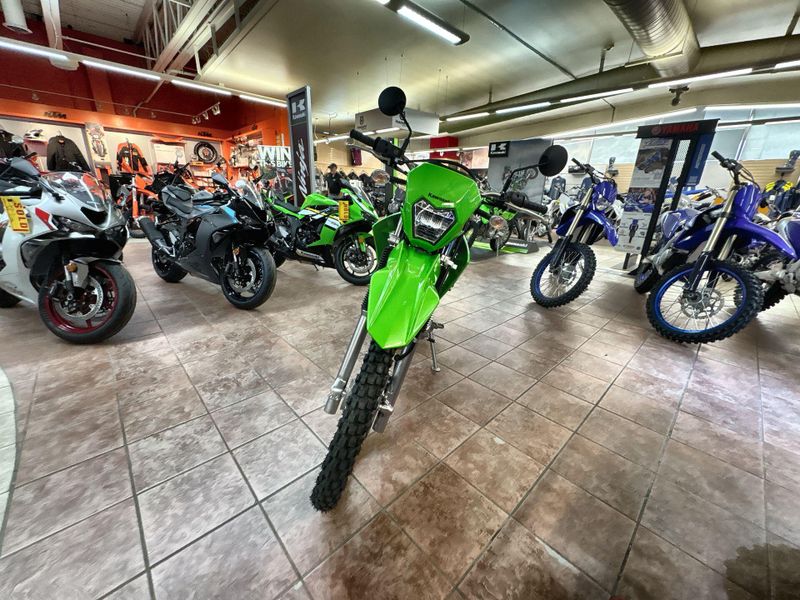

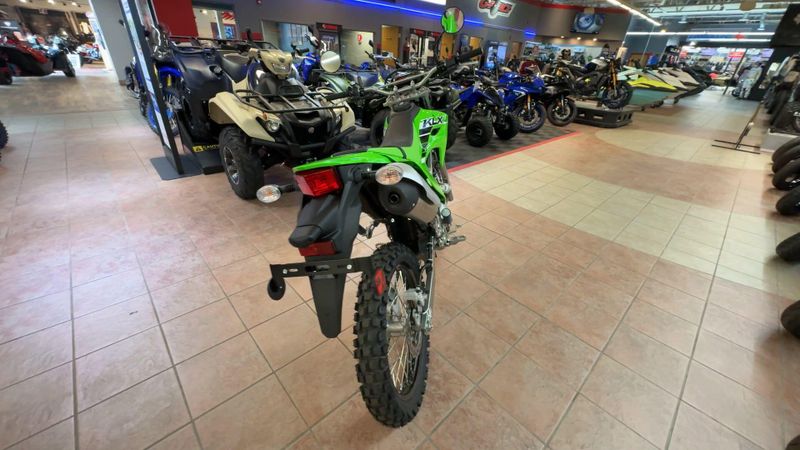

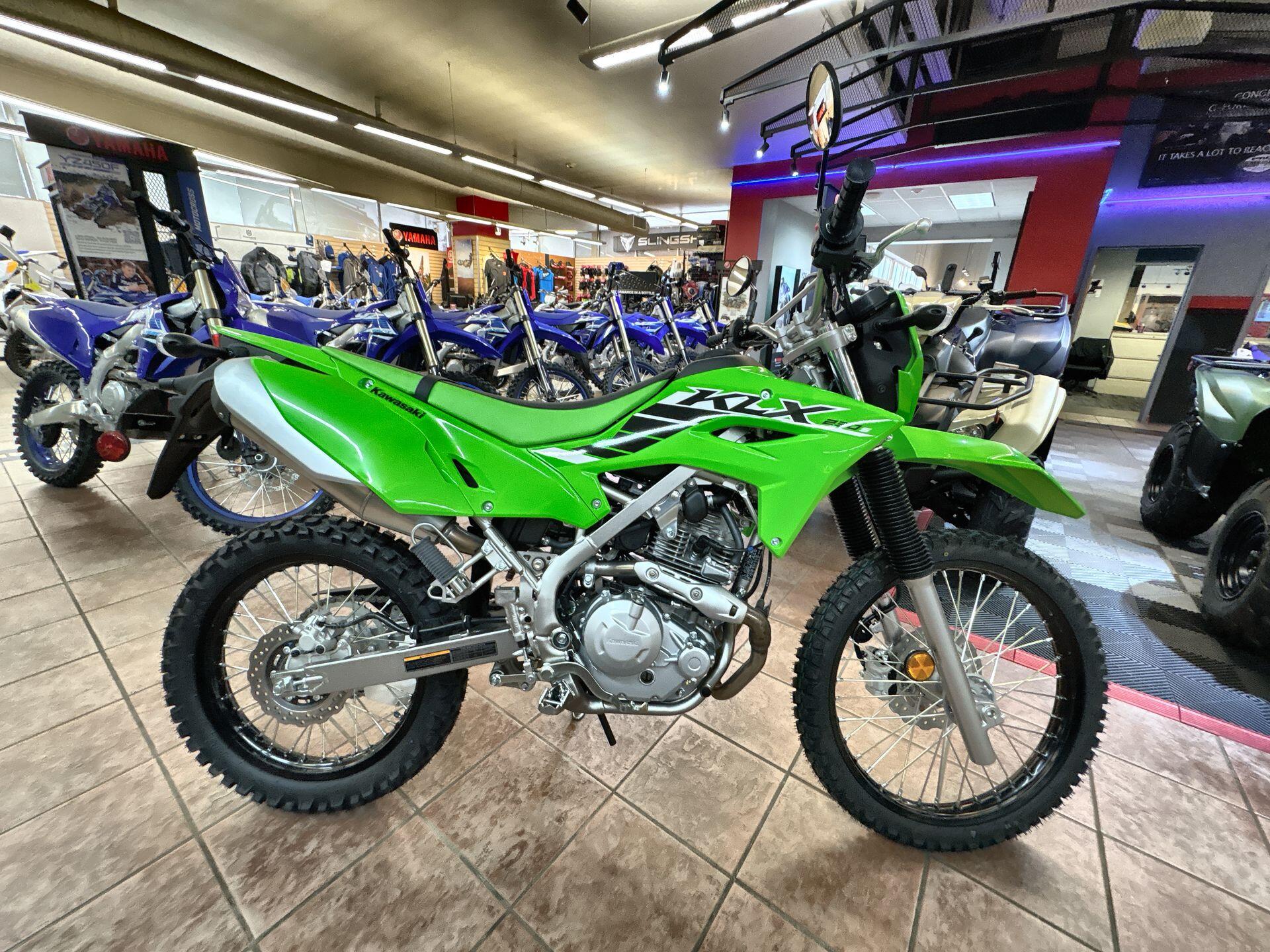

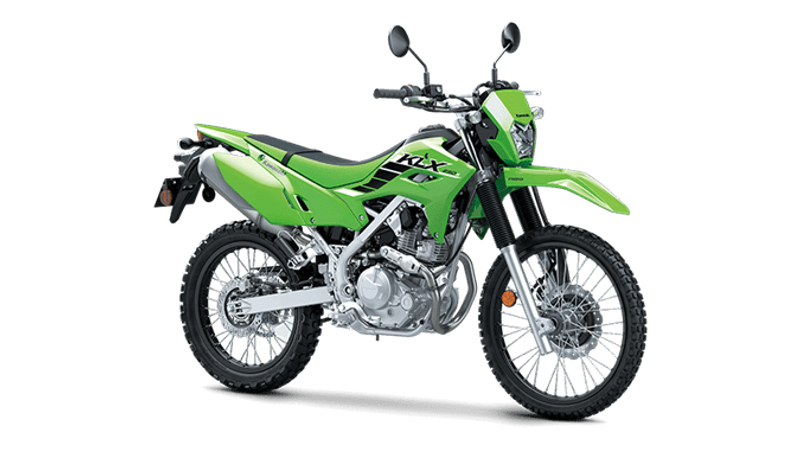

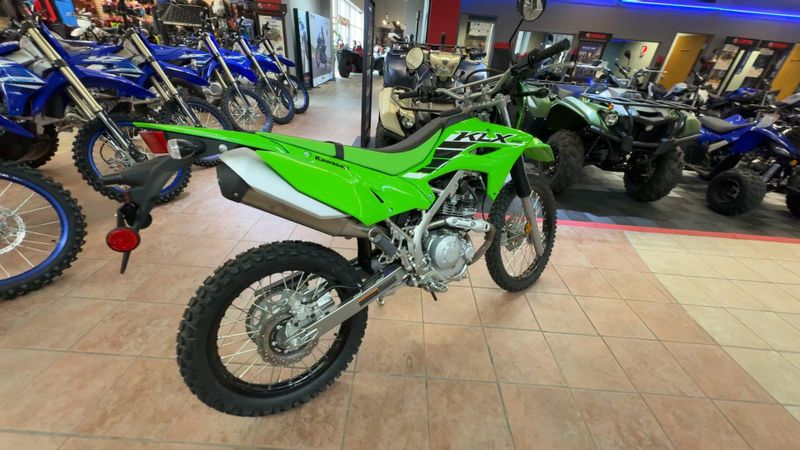

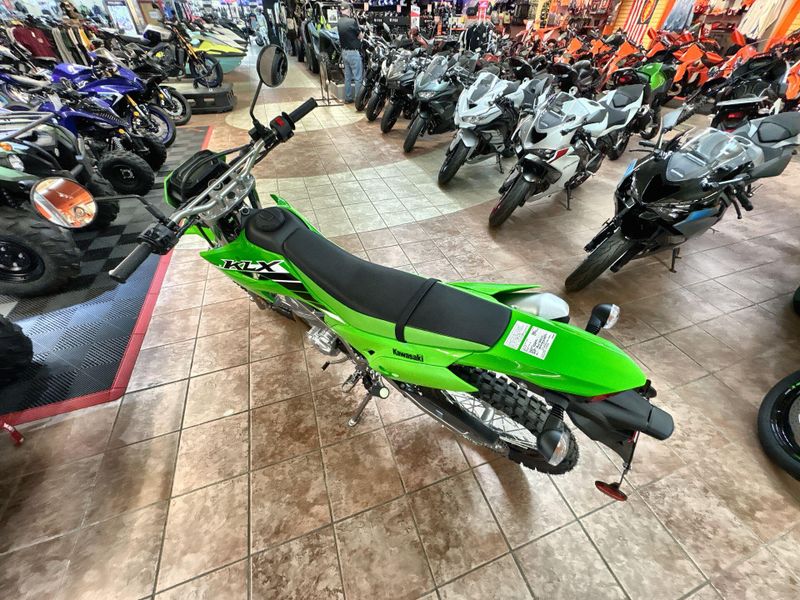

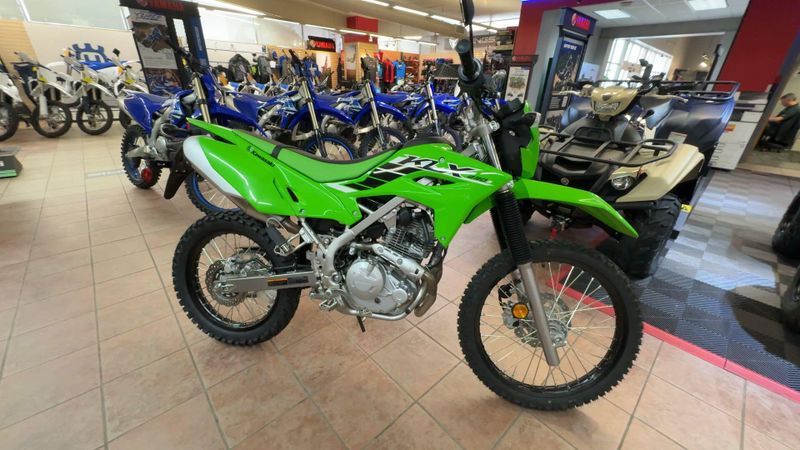

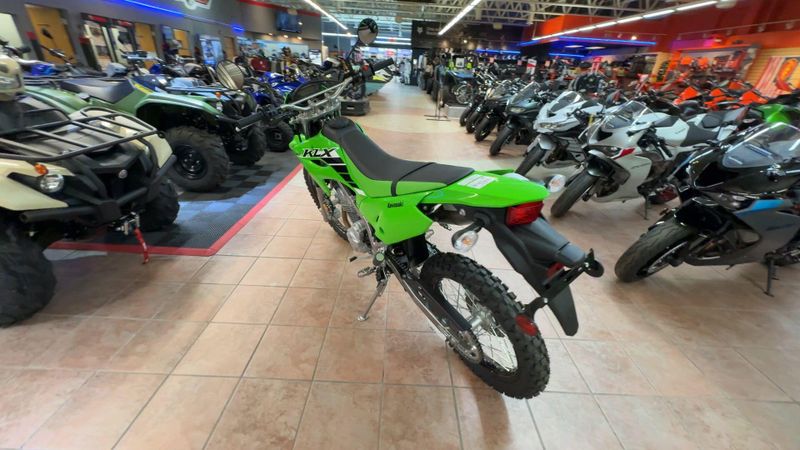

New 2025 Kawasaki KLX 230 S
Vehicle Details
- Stock #: K20088
- VIN: MH4LXED16SJP00088
- Engine: 4-stroke single, SOHC, air-cooled
- Exterior Color: GRN
Similar Vehicles
GET OUT AND PLAY
The KLX®230 S motorcycle extends the playing field with the thrill of dual-sport performance that's ready to conquer both on- and off-road. This agile bike features a quick-revving 233cc engine, lightweight chassis, long-travel suspension, and ample ground clearance for enhanced capability on the roads or trails. The KLX®230 S offers a low seat height which allows riders to comfortably reach the ground at stops for increased confidence. Turn wherever you go into the ultimate playground with the bike that delivers a thrilling ride on paved streets, dirt trails, and beyond.
Highlighted Feature
- GO PLAY: The KLX®230 dual-sport lineup is powered by a 233cc fuel-injected, air-cooled single cylinder engine, tuned for low- to mid-range power.
- BUILT TOUGH: Versatility is the name of the game as the KLX®230 lineup is loaded with dual-sport tuned features. The engine and chassis were designed together to make KLX230 models as agile and lightweight as possible, while the frame, suspension, swingarm, brakes and wheels are fine-tuned for thrilling on- and off-road performance.
- TAKE ON THE STREET AND DIRT: Designed with KX™-inspired ergonomics, styling and versatile dual-sport features, the KLX®230 lineup takes your adventure to new heights.
- MORE RIDERS, MORE FUN: The KLX®230 S extends the playing field, allowing more riders to experience the thrill of dual-sport riding thanks to a reduced 33.3-inch seat height (34.8 inches on standard model).
POWER

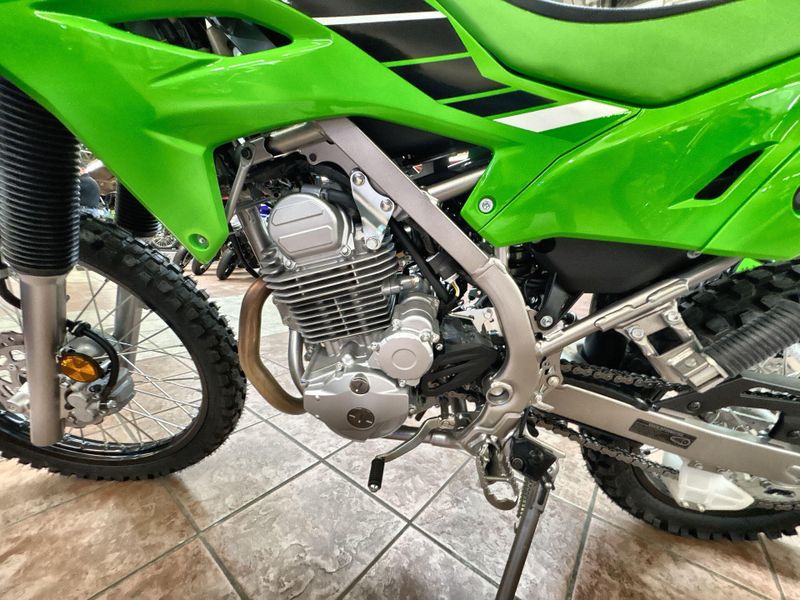

- Engine: 4-stroke single, SOHC, air-cooled
- Displacement: 233cc
- Bore x Stroke: 67.0 x 66.0mm
- Compression Ratio: 9.4:1
- Maximum Torque: 13.0 lb-ft @ 6,400 rpm
- Fuel System: DFI® with 32mm throttle body
- Ignition: TCBI with Electronic Advance
- Transmission: 6-speed
- Final Drive: Sealed chain
- Electronic Rider Aids: Anti-lock Brake System (ABS)
PERFORMANCE

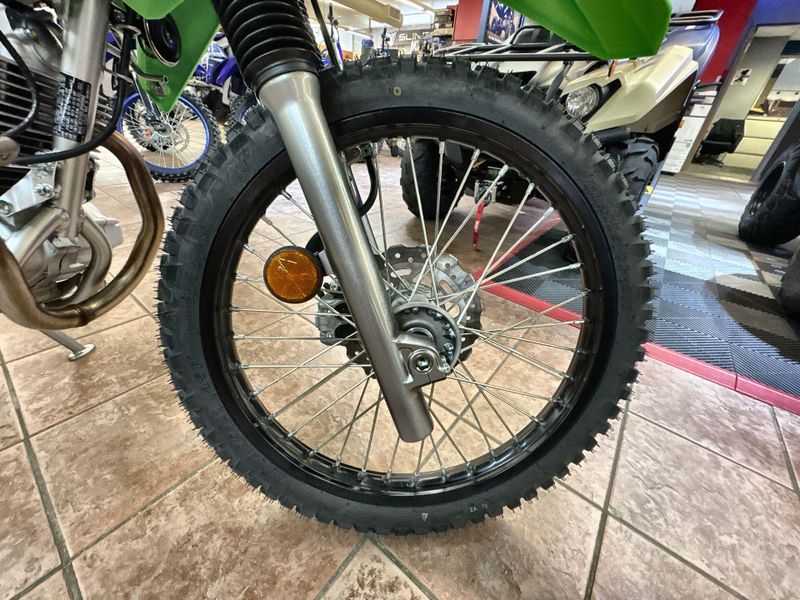

- Front Suspension / Wheel Travel: 37mm telescopic fork/7.9 in
- Rear Suspension / Wheel Travel: Uni-Trak® linkage system and single shock with adjustable spring preload/8.8 in
- Front Tire: 2.75 x 21
- Rear Tire: 4.10 x 18
- Front Brakes: Single 240mm (265mm ABS Model) petal disc with a dual-piston caliper (and ABS)

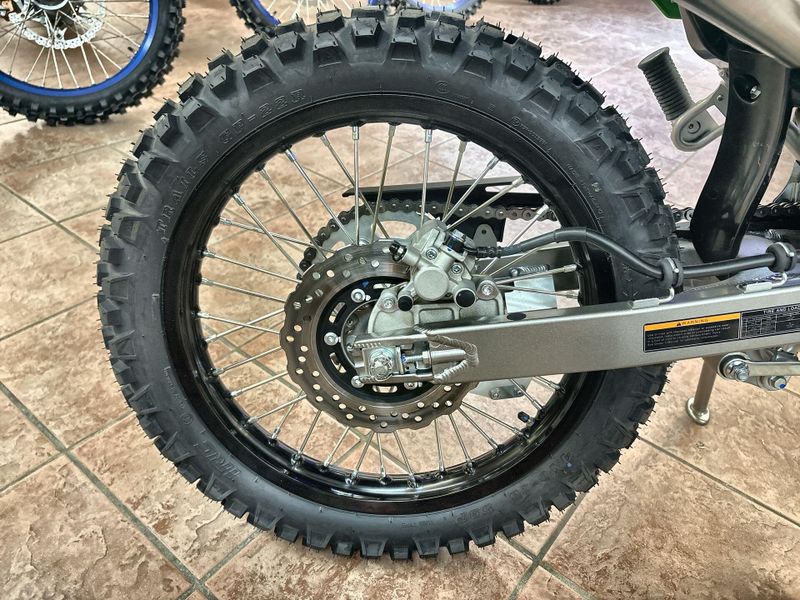

- Rear Brakes: Single 220mm petal disc with single-piston caliper (and ABS)
DETAILS

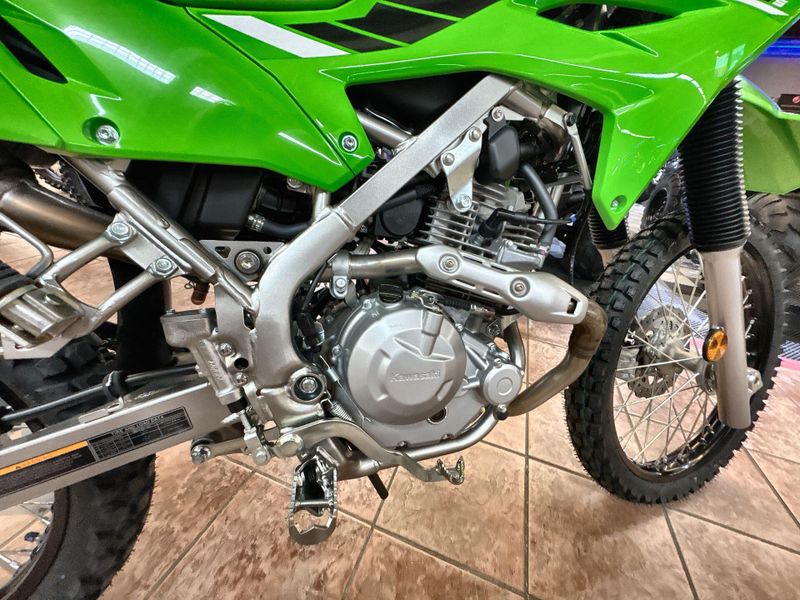

- Frame Type: Perimeter, high-tensile steel
- Rake/Trail: 24.6°/3.8 in
- Overall Length: 81.9 in
- Overall Width: 33.3 in
- Overall Height: 44.9 in
- Ground Clearance: 9.4 in

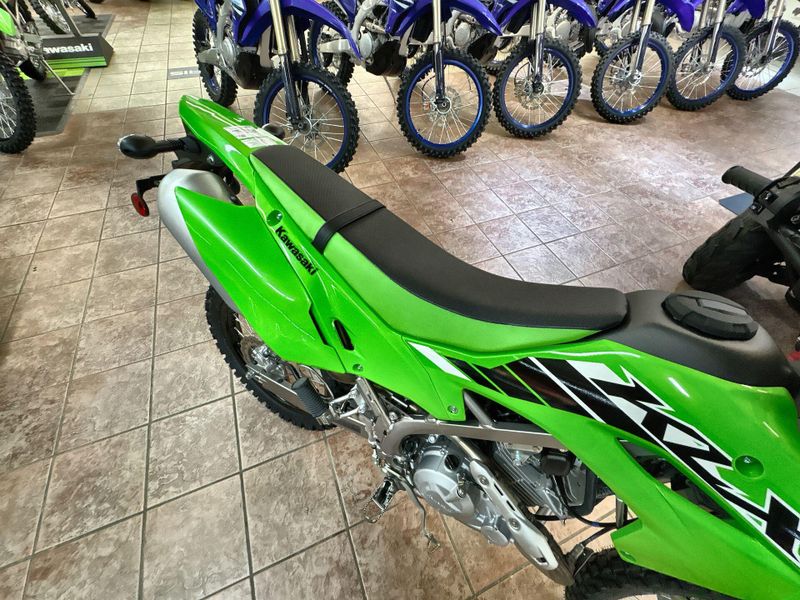

- Seat Height: 33.3 in
- Dry Weight: 275.6 lb** (ABS), 273.4 lb** (non-ABS) / 277.7 lb** (ABS), 275.5 lb** (non-ABS) 50-State Model
- Curb Weight: 291.1 lb* (ABS), 288.9 lb* (non-ABS) / 293.3 lb* (ABS), 291.1 lb* (non-ABS) 50-State Model

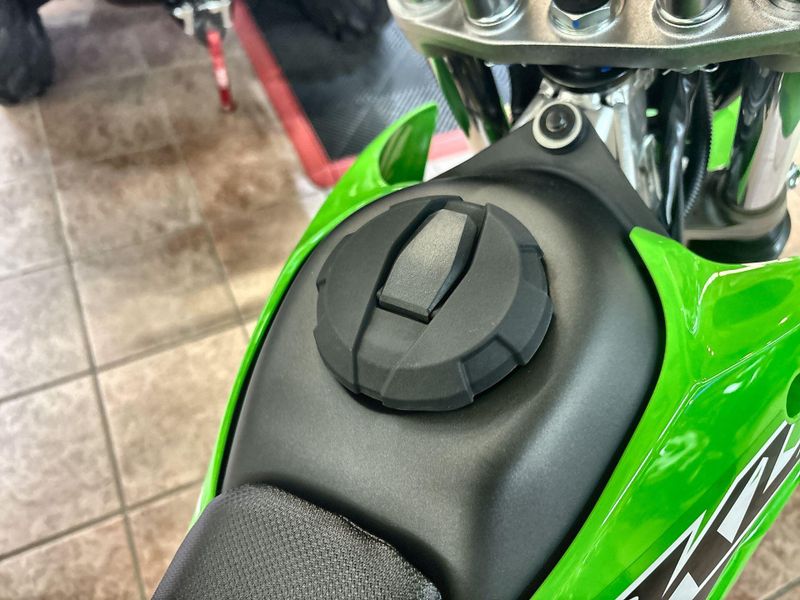

- Fuel Capacity: 2.0 gal
- Wheelbase: 53.7 in

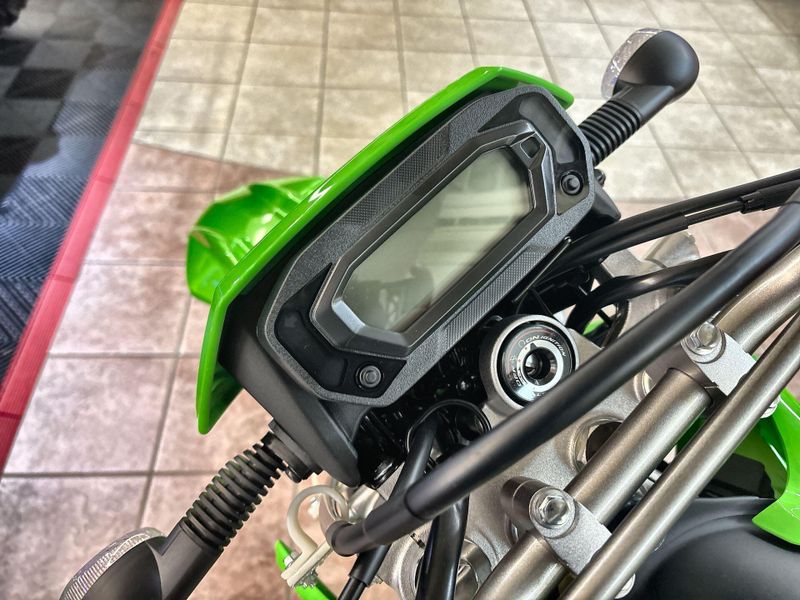

- Special Features: ERGO-FIT®, LCD Instrumentation with Smartphone Connectivity via RIDEOLOGY THE APP MOTORCYCLE
- Color Choices: Lime Green
